AWS Networking Overview

UCSB Campus Cloud uses AWS Transit Gateway as the central hub for network connectivity. Every account that needs to reach the campus network receives a VPC attached to the Transit Gateway. Internet-only accounts use standalone VPCs without a Transit Gateway attachment.

How to Connect to Campus

UCSB has two AWS Direct Connect connections and a Site-to-Site VPN between AWS and the UCSB campus network. All three connect in us-west-2. VPCs in us-east-1 reach campus through us-west-2.

Link Region Purpose
Direct Connect Circuit 1 us-west-2 Primary campus connectivity
Direct Connect Circuit 2 us-west-2 Redundancy / failover
Site-to-Site VPN (IPsec over the internet) us-west-2 Backup if both Direct Connect circuits fail

Routing preference: Direct Connect → Site-to-Site VPN. Failover is automatic and transparent to workloads. Traffic from your VPC to campus resources routes through the Transit Gateway — you do not need to configure this yourself.

Requesting Networking Changes

All persistent networking changes (new CIDR, new Transit Gateway attachment, firewall rule changes at the Transit Gateway level) require a ServiceNow ticket. Day-to-day Security Group and NACL changes within your account do not require a ticket.

Security Groups and NACLs

  • You manage Security Groups for your own resources.
  • Network ACLs are available but Security Groups are the preferred method.
  • Service Control Policies (SCPs) do not restrict Security Group rules, but best practices apply:
    • Avoid 0.0.0.0/0 inbound on sensitive ports (22, 3389, database ports).
    • Prefer inbound rules scoped to campus CIDR ranges for administrative access.

Other Campus Cloud VPCs can reach yours. Every VPC attached to the Transit Gateway has a network route to every other attached VPC, including VPCs in other departments’ accounts. Only your Security Groups and network ACLs stand between them. Scope inbound rules to the specific sources that need access — not the whole Landing Zone range (10.226.0.0/15).

DNS

  • Private hosted zones in Route 53 are available for internal service discovery.
  • There is no UCSB-managed internal DNS zone shared by default. Each team manages its own private hosted zones.
  • Contact the Cloud Team if you need a CNAME or A record in a UCSB-owned public DNS zone.

Off-Campus Access

To reach resources in your Campus Cloud VPC from a laptop that is not on the UCSB campus network, use Secure Service Access (SSA). SSA uses the Zscaler Client Connector, which you install on your laptop and sign in to with UCSB SSO. It replaces the Campus VPN (Ivanti), which is being retired on January 22, 2027. SSA is licensed to faculty, staff, and student employees. To get the connector, see Secure Service Access (SSA).

Campus Network Firewall

Traffic from AWS to campus resources passes through the UCSB campus firewall. If you need to allow traffic from AWS to a specific campus host or service:

  1. Identify the AWS egress IP range (see Egress IP Addresses below, or ask the Cloud Team for the current list).
  2. Submit a firewall rule request through the appropriate campus IT process for your department.

Troubleshooting Connectivity

Cannot Reach a Campus Resource from AWS

  1. Verify the EC2 instance is in a campus-connected VPC (not an internet-only VPC).
  2. Check the Security Group allows outbound to the campus IP range.
  3. Verify the campus firewall allows inbound from the AWS egress IP range. Request firewall changes through your department IT if needed.
  4. Check that the campus host’s local firewall accepts traffic from the 10.226.0.0/16 or 10.227.0.0/16 private ranges used by the Landing Zone.

Cannot Reach a Private IP in AWS from Your Laptop

  1. Confirm the Zscaler Client Connector is turned on and signed in (see Off-Campus Access).
  2. Confirm the resource’s Security Group allows inbound traffic from the campus CIDR ranges (128.111.0.0/16 and 169.231.0.0/16).
  3. Confirm the VPC has a Transit Gateway attachment (Console → VPC → Transit Gateway Attachments).
  4. Ping or traceroute from your laptop to inspect where the path breaks.
  5. If all of the above are correct, the issue may be a campus host-based firewall or the campus network firewall. Contact the ITS Service Desk and ask for the Network Operations Center (NOC).

High Latency Between Campus and AWS

  • Direct Connect should show < 5 ms latency to us-west-2 and < 60 ms to us-east-1.
  • Latency significantly above these values may indicate the Site-to-Site VPN failover path is in use. Check the AWS Health Dashboard and open a ServiceNow ticket if the issue persists.

Network Architecture Details

This section provides technical details about the Landing Zone network infrastructure for users who need them for firewall rules, troubleshooting, or vendor allowlisting.

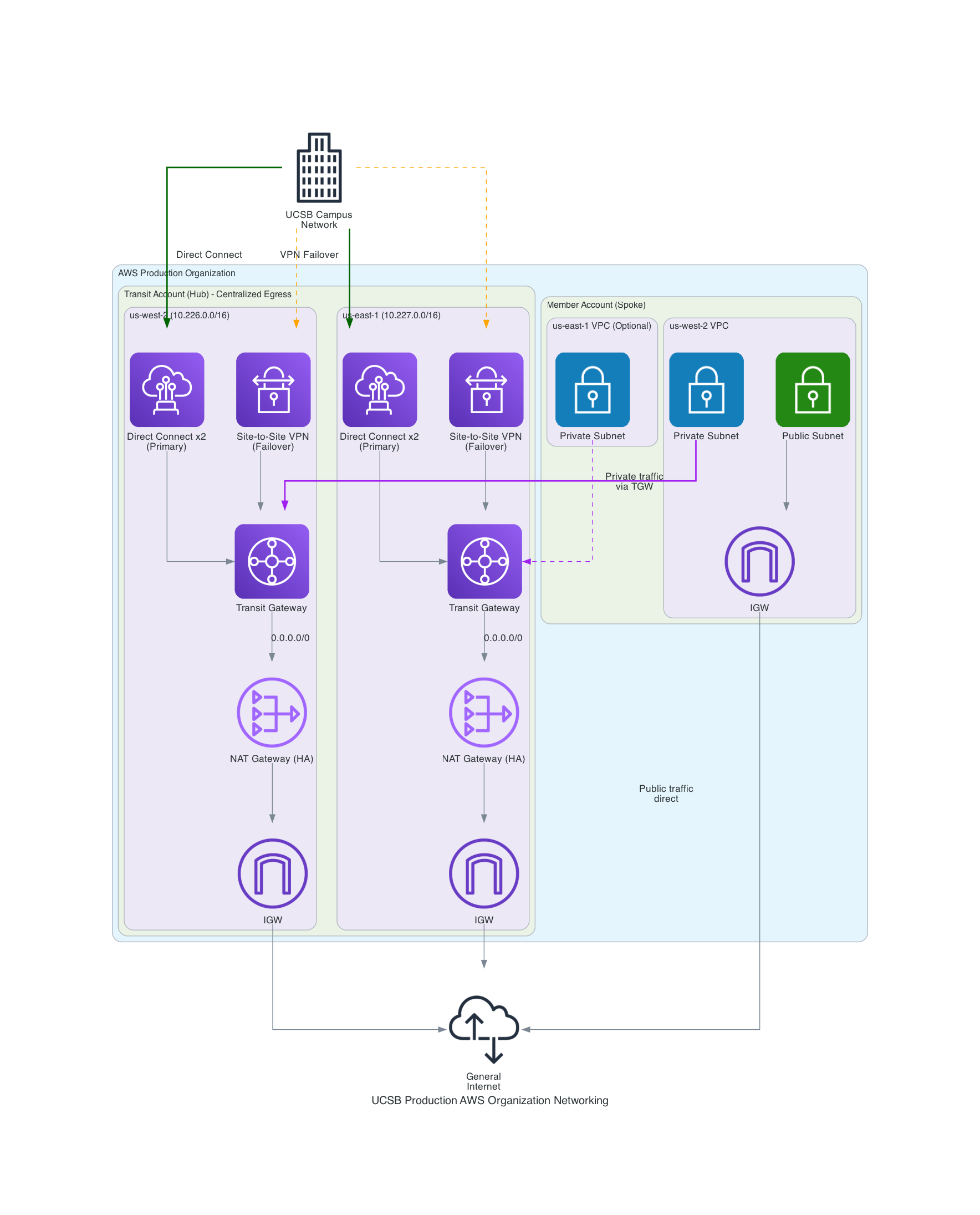

Architecture Diagram

UCSB AWS Landing Zone Network Architecture showing Transit Gateway, NAT Gateway, Direct Connect, and VPN connectivity between campus and AWS

Regions and IP Address Space

The Landing Zone is deployed in two regions:

Region Location Private CIDR Allocation
us-west-2 Oregon 10.226.0.0/16
us-east-1 N. Virginia 10.227.0.0/16

These RFC 1918 private addresses are routed between AWS and the UCSB campus network. Individual account VPCs receive a smaller block (e.g., /24) from these ranges via the Cloud Team’s IPAM system.

Do not manually assign a CIDR that overlaps with these ranges or with the UCSB campus address space (128.111.0.0/16, 169.231.0.0/16). Conflicts will break routing.

How Traffic Flows

  • Public subnet traffic in your account goes directly through the account’s Internet Gateway — it does not travel through the Transit Gateway.
  • Private subnet traffic routes to the Transit Gateway, which sends it either to:
    • The NAT Gateway (for internet-bound traffic), or
    • Direct Connect / VPN (for campus-bound traffic).

Egress IP Addresses

Traffic leaving your private subnets to the internet appears to come from centrally managed NAT Gateway IP addresses. These IPs can change but rarely do.

Current NAT Gateway IPs (us-west-2):

  • 44.231.186.204
  • 44.232.156.254

Campus-side VPN endpoint (us-west-2): 128.111.38.197

If you need IPs for other regions or the most current values, open a ServiceNow ticket.

Public IP Addresses

  • Internet-facing resources (load balancers, EC2 instances in public subnets) can use Elastic IPs or auto-assigned public IPs.
  • If your workload needs a persistent public IP, allocate an Elastic IP in your account.
  • IPv6 is not currently available in Campus Cloud accounts.

VPC Options

When your account is provisioned, the Cloud Team creates a VPC using one of two product types from the Service Catalog:

VPC Type Subnets Campus Network Access Use When
Simple VPC with Campus Connectivity Yes — you choose a family (below) Yes, via Transit Gateway, for families with a private subnet. *.public families have no campus connection Most workloads — running servers, databases, or anything needing network connectivity
Advanced VPC No — an empty VPC you build out yourself Not by default — the product does not create a Transit Gateway attachment, so you configure any campus connection yourself You need full control over your network design from scratch

Specify which type you need in your account request or ServiceNow ticket. You can have both types in the same account.

VPC Families

When you launch the Simple VPC product, choose a family that determines the number of subnets, their type, and the total IP address space:

Family Subnets IPs Subnet Type Availability Zones
n1.small.public 1 32 1 public 1
n1.small.private 1 32 1 private 1
n1.medium.public 1 64 1 public 1
n1.medium.private 1 64 1 private 1
n1.large.public 1 128 1 public 1
n1.large.private 1 128 1 private 1
n2.medium.public 2 64 2 public 2
n2.medium.private 2 64 2 private 2
n2.medium.mixed 2 64 1 public, 1 private 1
n2.large.public 2 128 2 public 2
n2.large.private 2 128 2 private 2
n2.large.mixed 2 128 1 public, 1 private 1
n4.large.mixed 4 128 2 public, 2 private 2
n2.xlarge.public 2 256 2 public 2
n2.xlarge.private 2 256 2 private 2
n2.xlarge.mixed 2 256 1 public, 1 private 1
n4.xlarge.mixed 4 256 2 public, 2 private 2

The n2.*.public, n2.*.private, and n4.* families spread subnets across two Availability Zones (AZs) for higher availability. The n2.*.mixed families put both subnets in a single AZ. If you need public and private subnets in two AZs, choose n4.large.mixed or n4.xlarge.mixed.

Families with a private subnet (*.private and *.mixed) are attached to the Transit Gateway and can reach campus. *.public families are not.
